BOSCH Series 4 island cooker hood 90 cm Stainless steel DIB97IM50

BRAND: BOSCH

COUNTRY- GERMANY

MADE IN: GERMANY

In stock(10)

Payment Options

TK 209900
Cash Payment - Only
Lifetime + Cash Payment

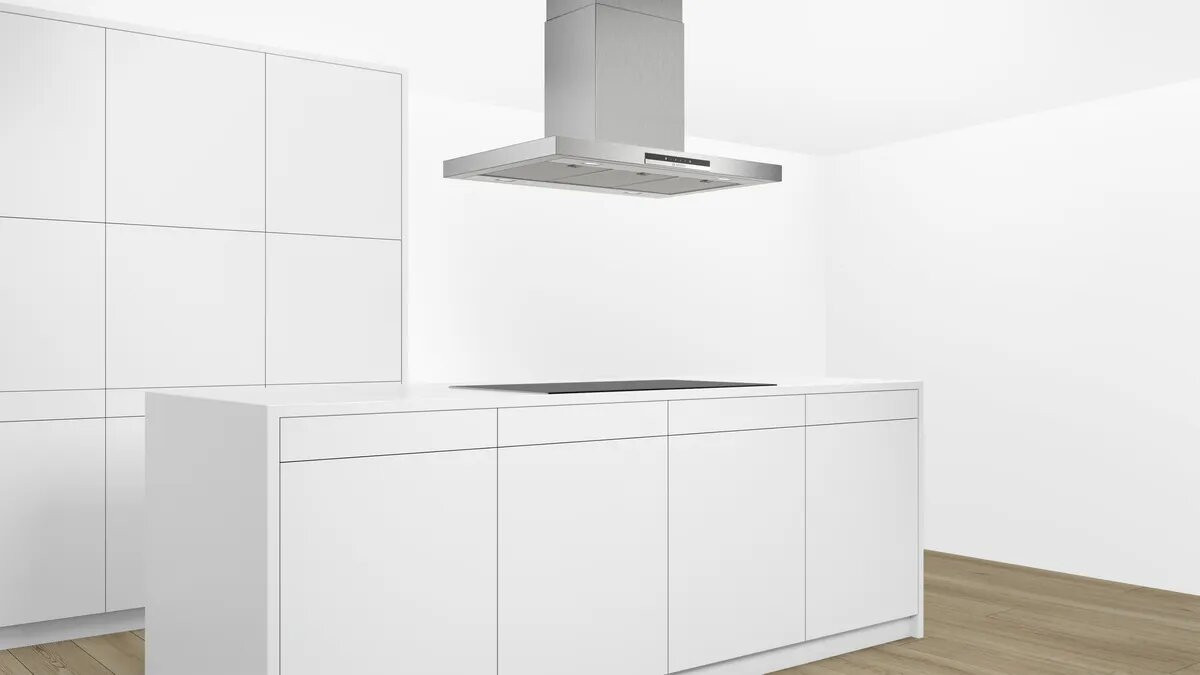

The island chimney hood: the perfect
solution for your cooking island thanks to
flexible ceiling mounting.
• Especially silent: maximal extractor performance with minimal
noise
• Easy-to-clean interior: hidden screws and cables along with
rounded edges make cleaning easy.

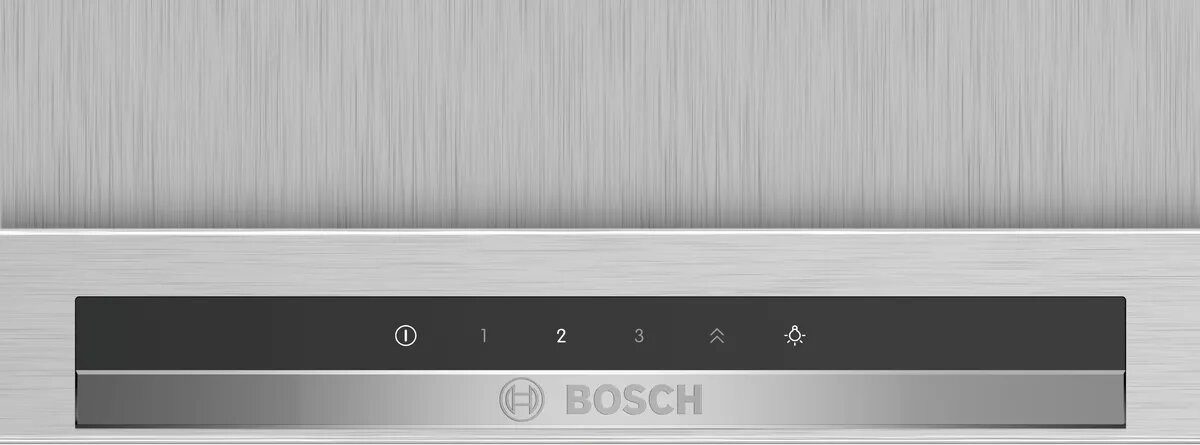

• TouchSelect control: quick touch-control selection of desired
settings and light.
Typology: ......................................................................Island/Ceilling
Length electrical supply cord: .............................................. 130.0 cm

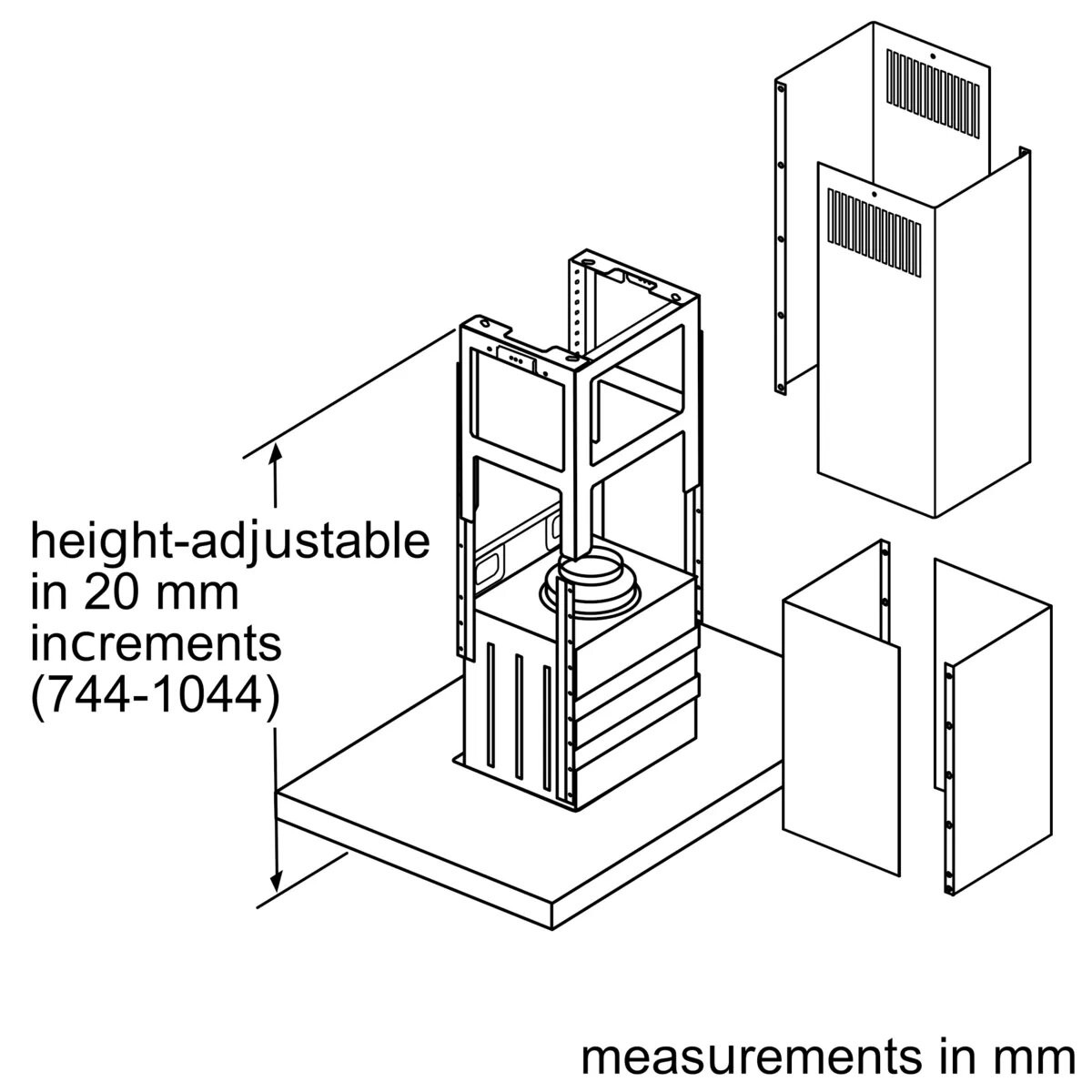

Height of the chimney: ...................................... 691-871/691-991 mm
Height of product, without chimney: ........................................ 53 mm
Net weight: ..............................................................................29.2 kg
Type of control: ...................................................................Electronic
Number of speed settings: ....................... 3-stages + intensive setting
Max. air extraction: ...............................................................438 m³/h
Boost position output recirculating: .....................................527 m³/h
Max. air recirculation: .......................................................... 390 m³/h
Boost position air extraction: ............................................... 754 m³/h
Number of lights: .............................................................................. 4
Noise level: ..............................................................57 dB(A) re 1 pW
Diameter of air outlet: .................................................. 150 / 120 mm

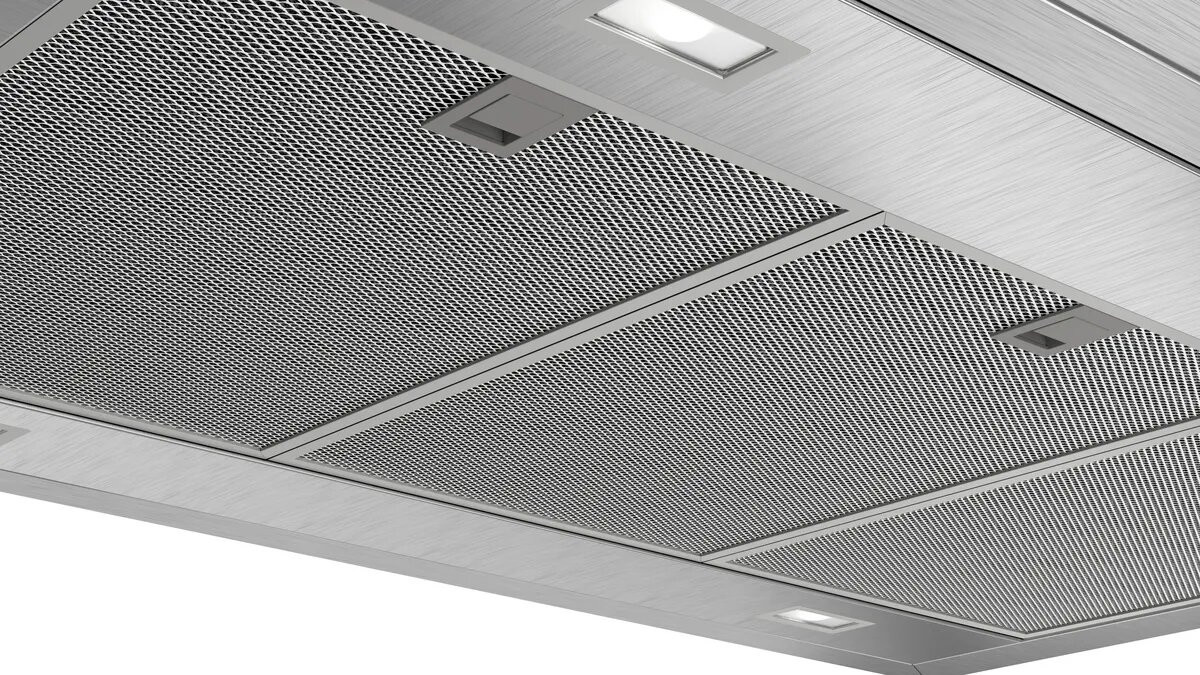

Grease filter material: .........................................Washable aluminium
Odour filter: ................................................................................... No
Optional accessories: ....... DHZ1231, DHZ1241, DHZ1246, DHZ1251,
DHZ1253, DHZ1256, DIZ2CB1I4, DIZ2CX5C6, DIZ2FX5D1,
DZZ0XX0P0, DZZ1XX1B6, DZZ2CB1B4, HEZG9AS00S
Type of lamps used: ..................................................................... LED
Grease filter type: ..................................................................Kassette
Clean filter reminders: ....................................................................No
Connection rating: .................................................................... 256 W
Fuse protection: ...........................................................................10 A
Voltage: ............................................................................... 220-240 V
Frequency: ........................................................................... 60; 50 Hz
Plug type: ....................................................... Gardy plug w/ earthing
Installation typology: ................................................................. Island
Material body: .............................................................. Stainless steel
Plug type: ....................................................... Gardy plug w/ earthing
Dimensions of the product, with chimney (if exists) (in): ...............x x
Dimensions of the packed product: .................. 33.07 x 24.01 x 40.94
Net weight: .........................................................................64.000 lbs
Gross weight: ..................................................................... 88.000 lbs
Motor location: ..............................Integrated motor in hood chimney
No-return airflow flap: ................................................................... Yes
Length electrical supply cord: .............................................. 130.0 cm

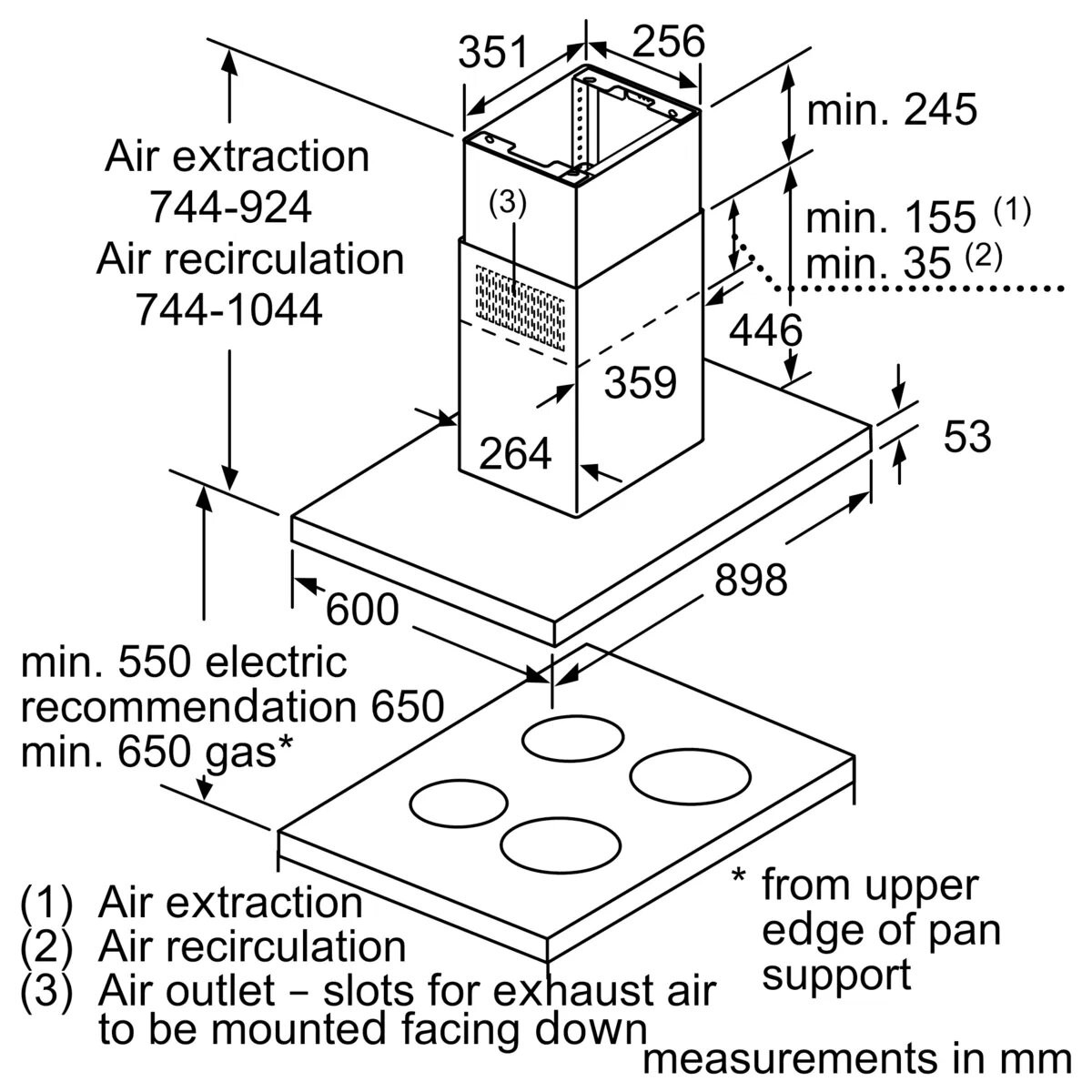

Dimensions of the product, with chimney (if exists): ....... 744-1044 x
898.0 x 600.0 mm
Dimensions of the packed product (HxWxD): ... 840 x 610 x 1040 mm
Net weight: ..............................................................................29.2 kg
Gross weight: .......................................................................... 39.7 kg

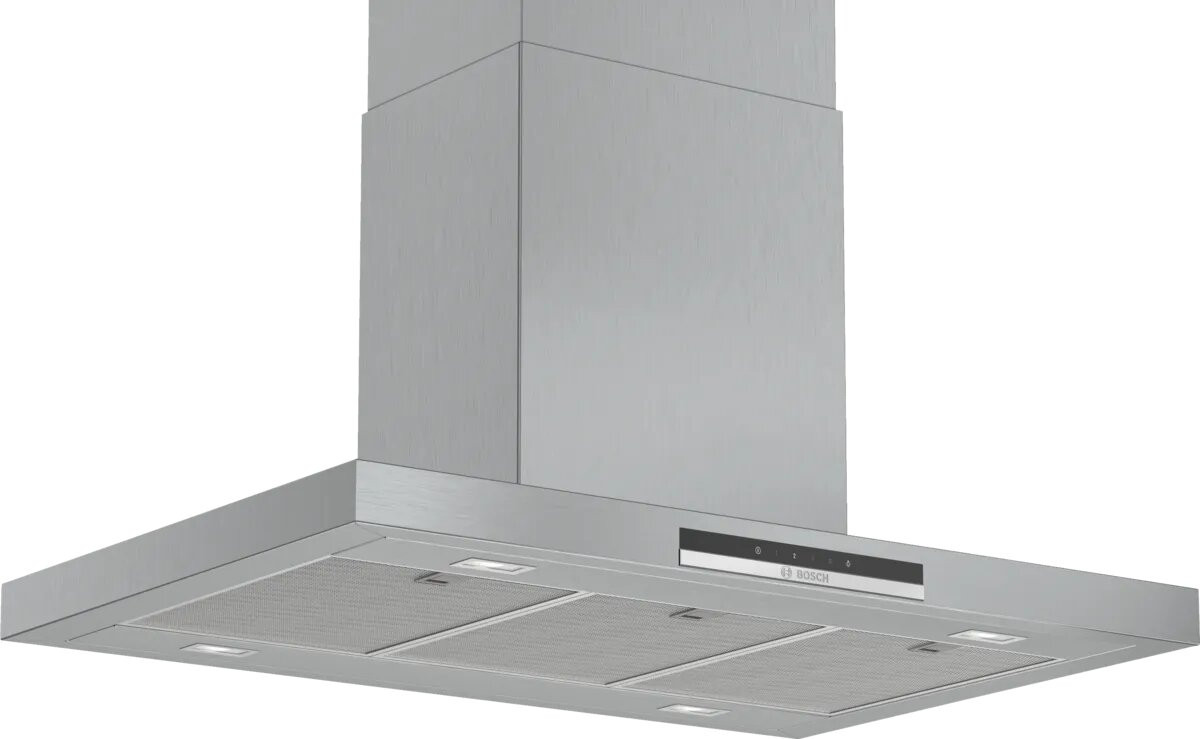

Series 4, island cooker hood, 90 cm,
Stainless steel
DIB97IM50
The island chimney hood: the perfect
solution for your cooking island thanks to
flexible ceiling mounting.
Design:
- Island chimney hood
- Appliance colour: brushed steel
- Ceiling mounted hood
Environment and safety:
- Energy Efficiency Class: B*
- Average Energy Consumption: 74.3 kWh/year*
- Blower Efficiency Class: B*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- Noise min./max. Normal Level: 45/57 dB*
Comfort:
- TouchControl for extractor speeds and light
- Electronic controls
- TouchControl with Electronic display
- 3 speeds plus intensive setting via TouchControl
- Electronic controls via TouchControl with Electronic display
- TouchControl (3 speeds plus intensive setting) with Electronic
display
- easy to clean Innerframe

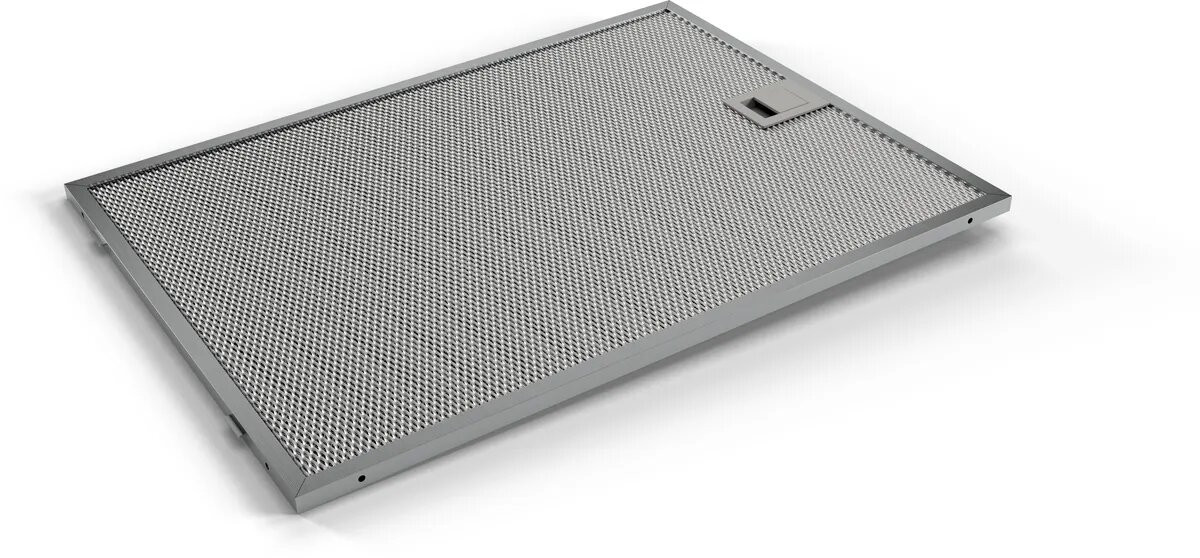

- Metal grease filter, dishwasher safe
Operating and power:
- 3 speeds plus intensive setting
- Automatic revert setting, 6 minutes
- Max. extraction rate: 754 m3/h
Power:
- Power rating: 256 W
- Twin channel high performance fan motor
- Capacitor energy efficient
- Light Intensity: 409 lux
Measures:

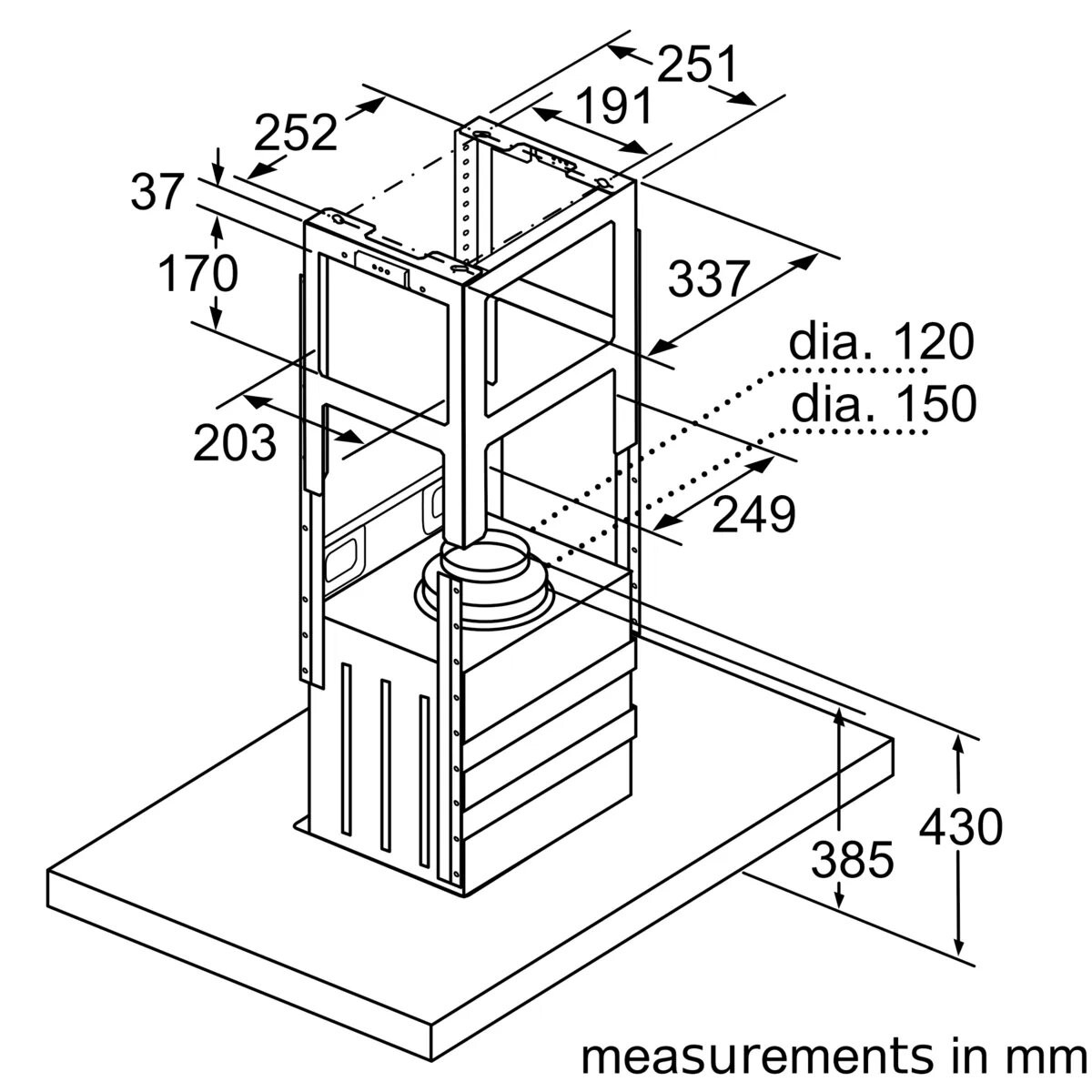

- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 744-924 x 898 x 600 mm
- Dimensions recirculating (HxWxD): 744-1044 x 898 x 600 mm
- Suitable for ducted or re-circulated extraction
Technical information:
- 4 x 1,5W LED
- Colour Temperature: 3500 K
- with one-way flap
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use438m³/h
- Intensive754 m³/h
- Extraction rate exhaust air according to EN 61591 max. 438 m³/h
- Maximum extraction rate exhaust air 438 m³/h according to EN
61591
- Extraction rate exhaust air according to EN 61591:
- max. normal use438 m³/h, intensive 754 m³/h
- For recirculated extraction recirculating kit or CleanAir recirculating
kit (accessory) needed
- Dimensions recirculating with CleanAir module (HxWxD): 812-1044
x 898 x 600 mm
- Additional noise insulation
- Noise level according to EN 60704-3 und EN 60704-2-13 at max.
normal use exhaust air: 57 dB(A) re 1 pW (44 dB(A) re 20 μPa
sound pressure)
- Noise level according to EN 60704-3 und EN 60704-2-13 exhaust
air:
- Max. normal use:57 dB(A) re 1 pW (44dB(A) re 20 μPa sound
pressure)
- Intensive:68 dB(A) re 1 pW (55 dB(A) re 20 μPa sound pressure)
- Electrical cable lenght 1.3 m
- Voltage: 220 - 240 V
